Repair Photos

Our Work in Pictures

Take a look at real repairs done on our workbench. From HDMI port replacements to stick drift fixes and deep cleanouts on PS5, Xbox, and Nintendo Switch.

PS5 HDMI 2.1 Port Micro-SolderingHDMI ReplacementPlayStation 5

PS5 HDMI 2.1 Port Micro-Soldering

Complete replacement of severely damaged HDMI pins with heavy-duty reinforced 2.1 port, verified under 45x stereo microscope.

Guaranteed WorkBook This Repair
DualSense Hall Effect Magnetic JoysticksHall EffectPS5 DualSense Controller

DualSense Hall Effect Magnetic Joysticks

Desoldered drifting potentiometer sticks and installed electromagnetic Hall Effect modules with zero circularity jitter.

Guaranteed WorkBook This Repair

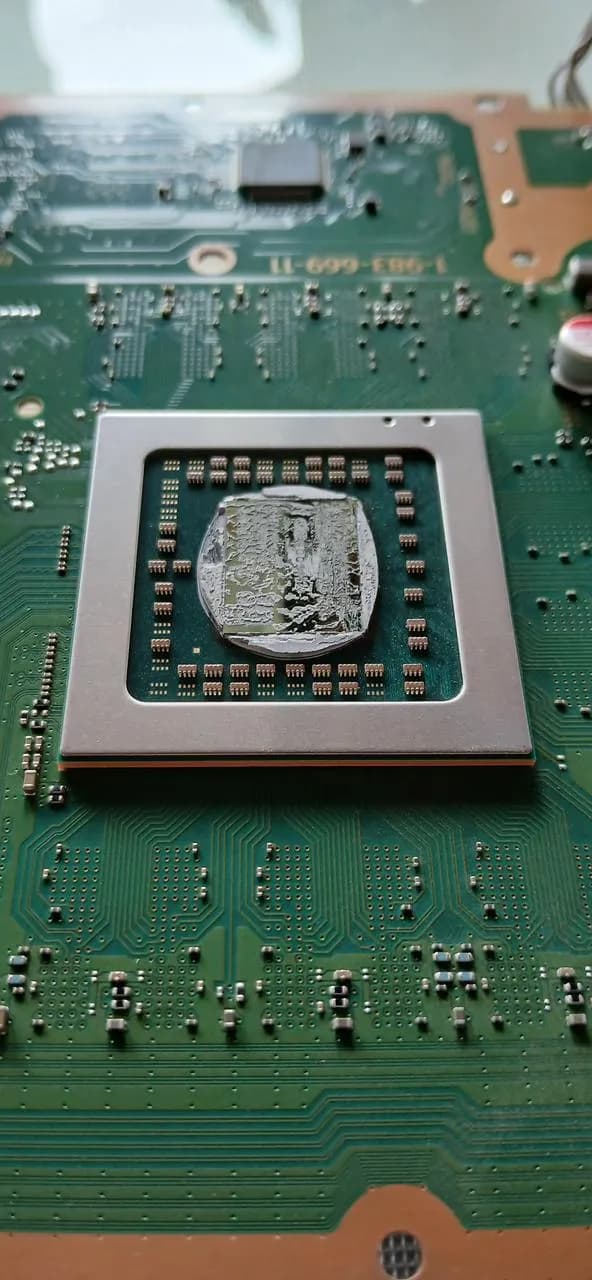

Liquid Metal Resurfacing & Deep Thermal ServiceLiquid Metal & CleaningPlayStation 5 Digital

Liquid Metal Resurfacing & Deep Thermal Service

Cleaned dry oxidized hot-spots on APU die, polished heatsink mating plate, and evenly redistributed gallium alloy.

Guaranteed WorkBook This Repair
Xbox Series X Power Rail Short RecoveryMicro-solderingXbox Series X

Xbox Series X Power Rail Short Recovery

Located shorted 12V MLCC capacitor causing instant shutdown on boot. Replaced with high-grade surface mount capacitor.

Guaranteed WorkBook This Repair
Nintendo Switch M92T36 Power IC ReplacementMicro-solderingNintendo Switch V2

Nintendo Switch M92T36 Power IC Replacement

Switch was drawing 0.00A from charger. Replaced burned M92T36 charging chip, restoring 15V 1.2A rapid charge in dock.

Guaranteed WorkBook This Repair
PS4 Pro Jet Engine Decrust & Thermal PadsLiquid Metal & CleaningPlayStation 4 Pro

PS4 Pro Jet Engine Decrust & Thermal Pads

Removed dense carpet of dust clogging heat-sink fins. Repasted with Arctic MX-4. Fan noise reduced by 85%.

Guaranteed WorkBook This Repair
The Right Tools for the Job

Proper Tools for Every Repair

We don't cut corners. We use proper microscopes, precision soldering stations, and thermal cameras to diagnose and fix delicate parts safely without damaging your console.
